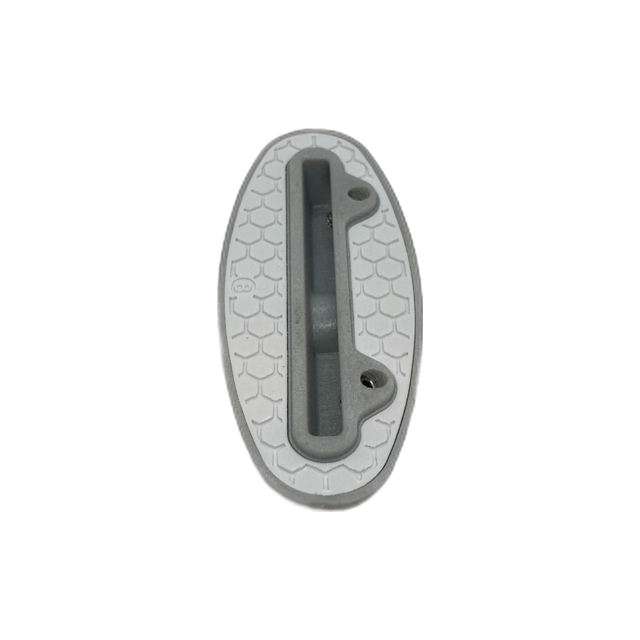

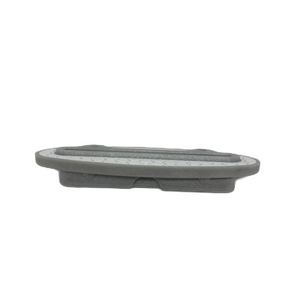

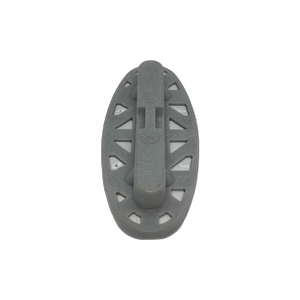

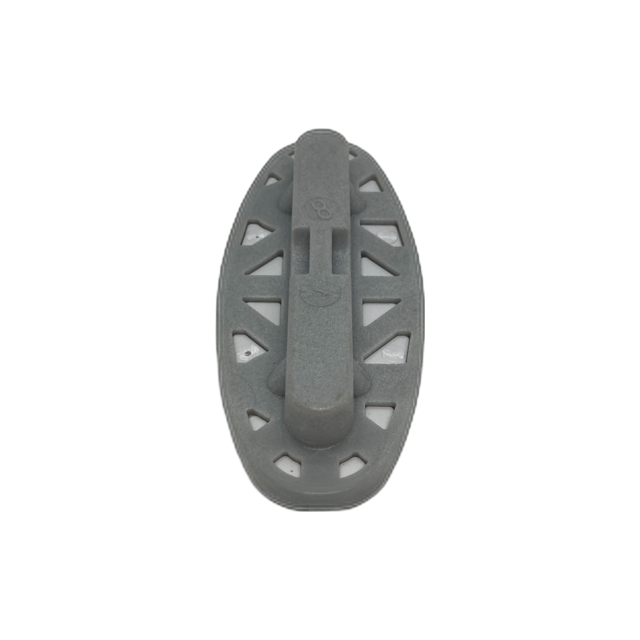

Gearbox 2 Fin Boxes - White Side Box

$8.50

Gearbox 2 Finboxes - WHITE SIDE BOX - Choose your CANT

The GEARBOX 2 FINBOXES are designed in Hawaii and made in the USA.  They are as light as possible without compromising the strength. The unique patent pending design, delivers unprecedented strength for an under the glass system.

The Gearbox design also gives the opportunity to use as an “after lamination” install as well. Once installed, GEARBOX 2 is almost invisible!

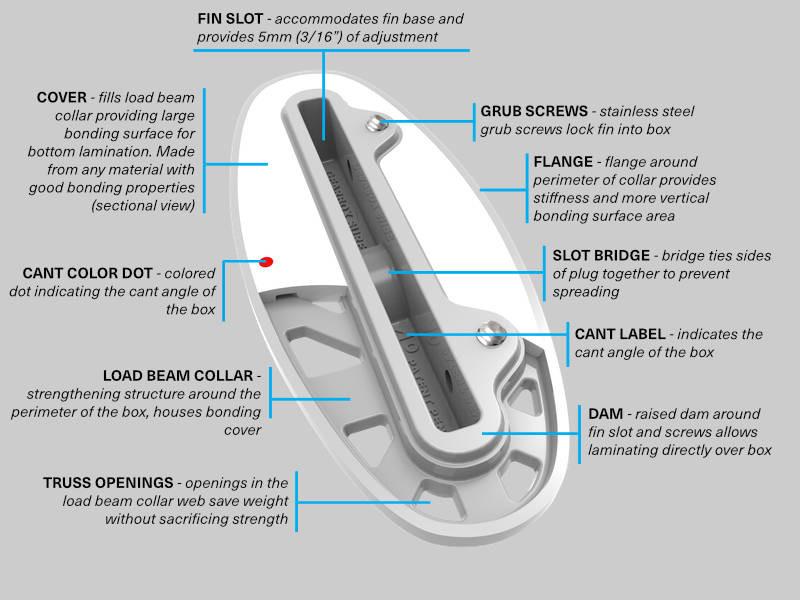

GEARBOX 2 employs a familiar screw placement, located on the inner side of the box, generating a locking force on the fin base. The fin bases have recesses onto which the screws land to help force the base into the slot.

The box's slot is compatible with dual tab fins, and with our own full length base.

To assist in the fine tuning of a board, the slot features 5mm (3/16") of movement forward and backward. Not only does this help when installing a fin, but it also facilitates control over the performance of the fins.

The two step install process creates a cavity with a shelf, onto which the load beam collar rests. Providing better bonding to the surfboard blank.

The complete routing system kit makes the installation process simple. Click here for Install Kit and how to install instructions on PU and EPS.

GEARBOX 2 FINBOXES are the only surfboard fin box on the market which has all CANT angles covered. The range starts from 0 degree CANT right up 8 degree CANT covering all fin angles for every condition.  We've found the most popular to be 6 degree CANT for purchases.

Choose your FIN CANT Range:

0 degree

2 degree

4 degree

6 degree

8 degree

To buy Gearbox White Side Boxes select the CANT and click the quantity you require then ADD to cart.
